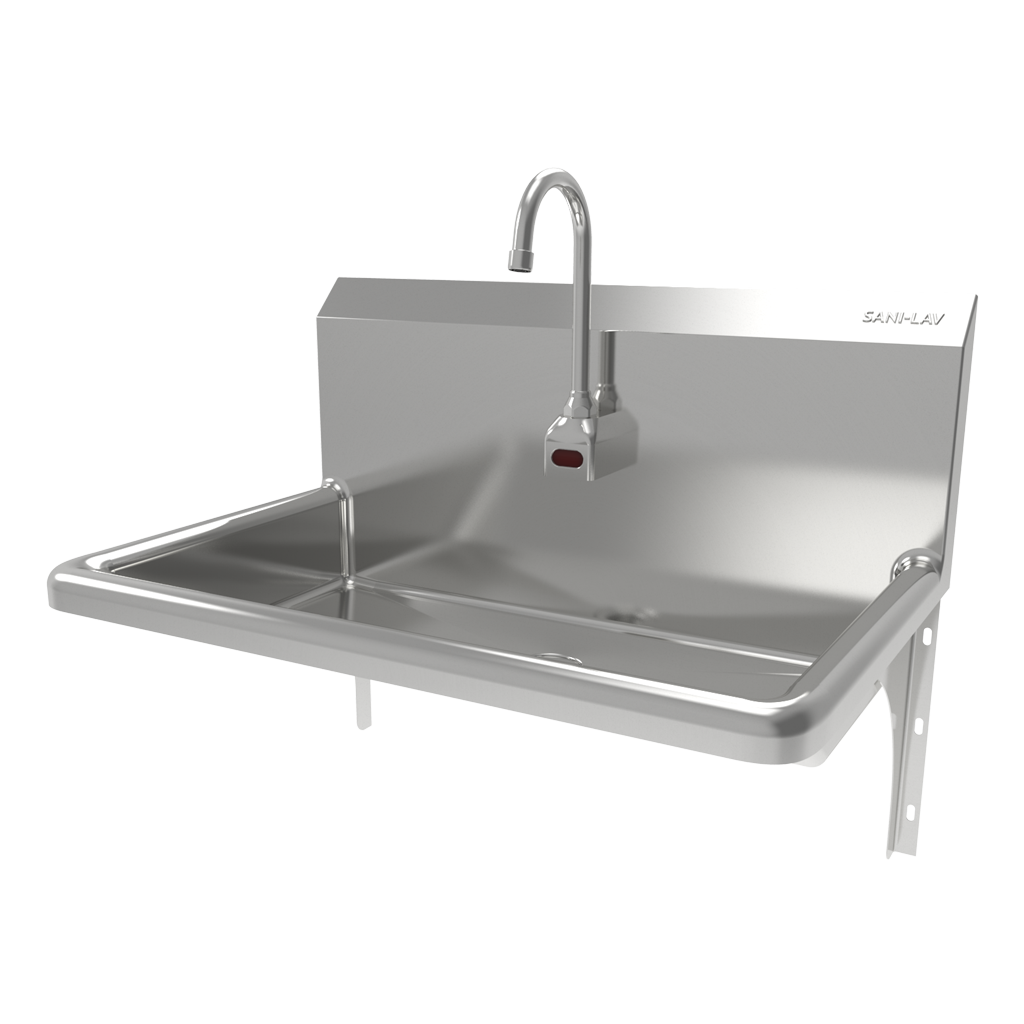

Models 5A1A & 5A1B

Add to Compare

Low-flow models available

Model 5A1A-0.5 – 0.5 GPM flow rate
Model 5A1B-0.5 – 0.5 GPM flow rate

Certified NSF/ANSI 372 low-lead and NSF/ANSI Standard 2 Food Equipment

Constructed from welded #16 gauge type 304 stainless steel. The front, bottom and back are formed from a single sheet with a rolled rim on front and sides. Exposed surfaces have a blended uniform satin finish.


(1) Wall mount sink – Model 5A1A or 5A1B
(1) AC or Battery powered sensor faucet assembly
(1) Strainer assembly with basket – Model 1010
(1) Wall-mounting brackets – Model 1040
(1) Mixing check valve – Model 201L

5A1A is AC Powered and 5A1B is Battery Powered.

Quick Specs

Outside Dimensions 30″ x 20″ x 15″ High
Inside Bowl Size 27″ x 16.5″ x 5″ Deep
Back Splash Height 10″
Water Activation AC or Battery Powered Sensor Faucet
Flow Rate 2 GPM
Inlet Connections 3/8″ Male Compression
Drain Opening 2″
Finish Satin
Strainer 1-1/2″ dia. Duo Basket Strainer
Wall Mounting Bracket 1/4″ dia. Mounting Holes
