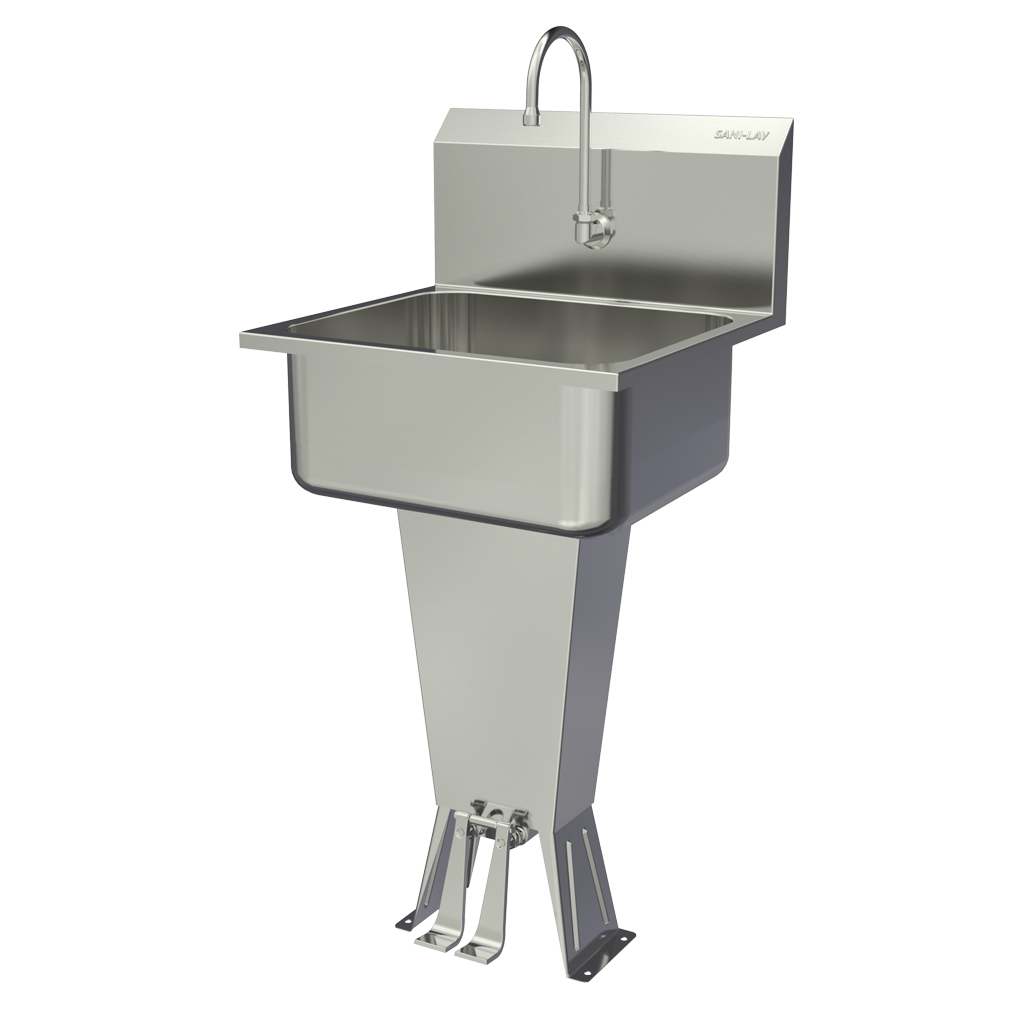

Model 521L
Certified NSF/ANSI 372 low-lead and NSF/ANSI Standard 2 Food Equipment
Hands-Free operation is ideal for use in food service applications. Deep drawn from heavy duty 18 gauge type 304 stainless steel with large rounded corners. Exposed surfaces have an electropolished finish to enhance resistance to corrosion, reduce any bacterial growth and make for easier cleaning. Specially designed foot valves provide easy access to working parts without disconnecting mount or plumbing.
Includes:
(1) Sink bowl – Model 521L
(1) Pedestal base
(1) Set of 6 mounting nuts to attach bowl to pedestal base
(1) Double foot pedal valve (bottom mount) with 2 nuts – Model 105L
(1) Swivel gooseneck spout with aerator – Model 2003L
(1) Connecting tubes for valve to spout connection – Model 1007L
(2) Fittings, brass, 0.375″ male compression and 0.375″ male NPT – Model 1008L
(1) Strainer assembly with basket – Model 1010
Quick Specs |
|
Outside Dimensions | 21″ x 20″ x 41-1/2″ High |
Inside Bowl Size | 19″ x 16″ x 10″ Deep |
Back Splash Height | 9-1/2″ |
Water Activation | Double Foot Pedal Valve |
Flow Rate | 2 GPM |
Inlet Connections | 1/2″ Male NPT |
Drain Opening | 2″ |
Finish | Electropolished |
Strainer | 1-1/2″ Dia. Duo Basket Strainer |
