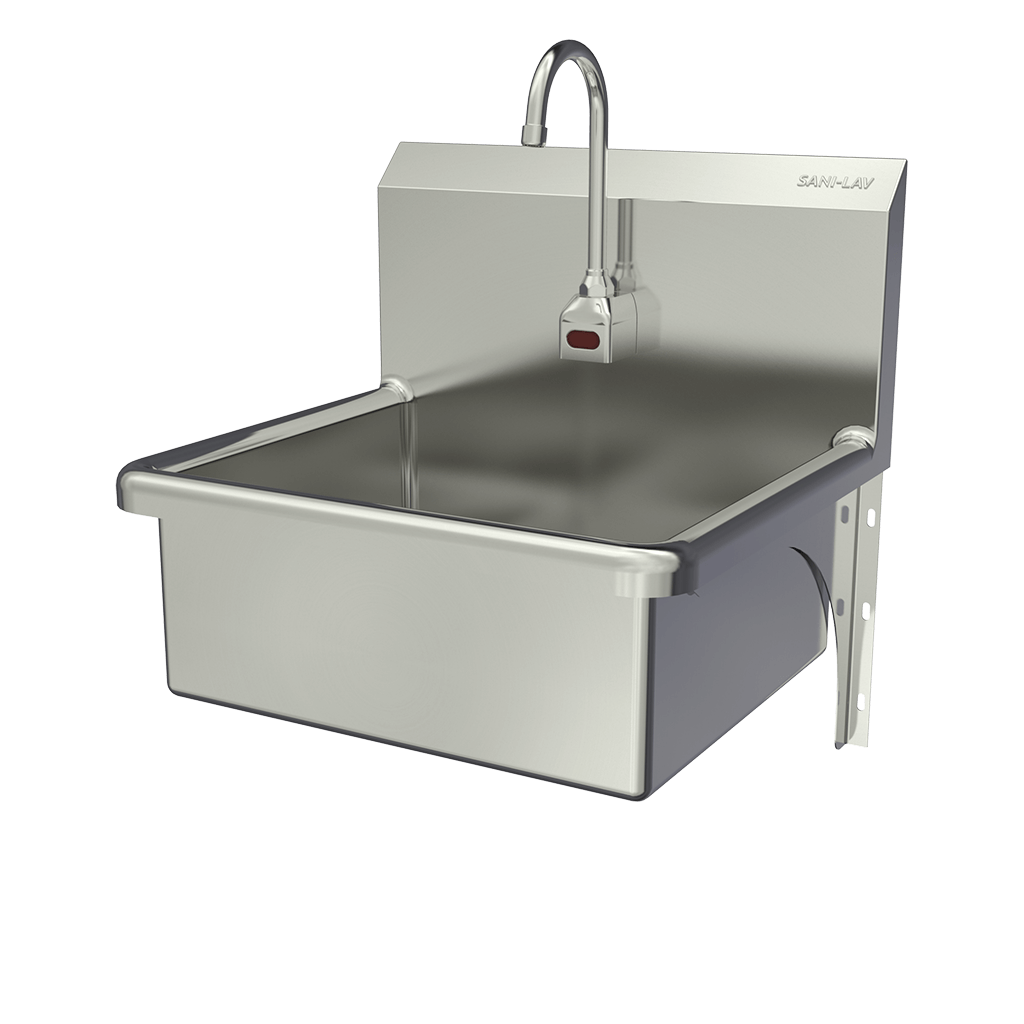

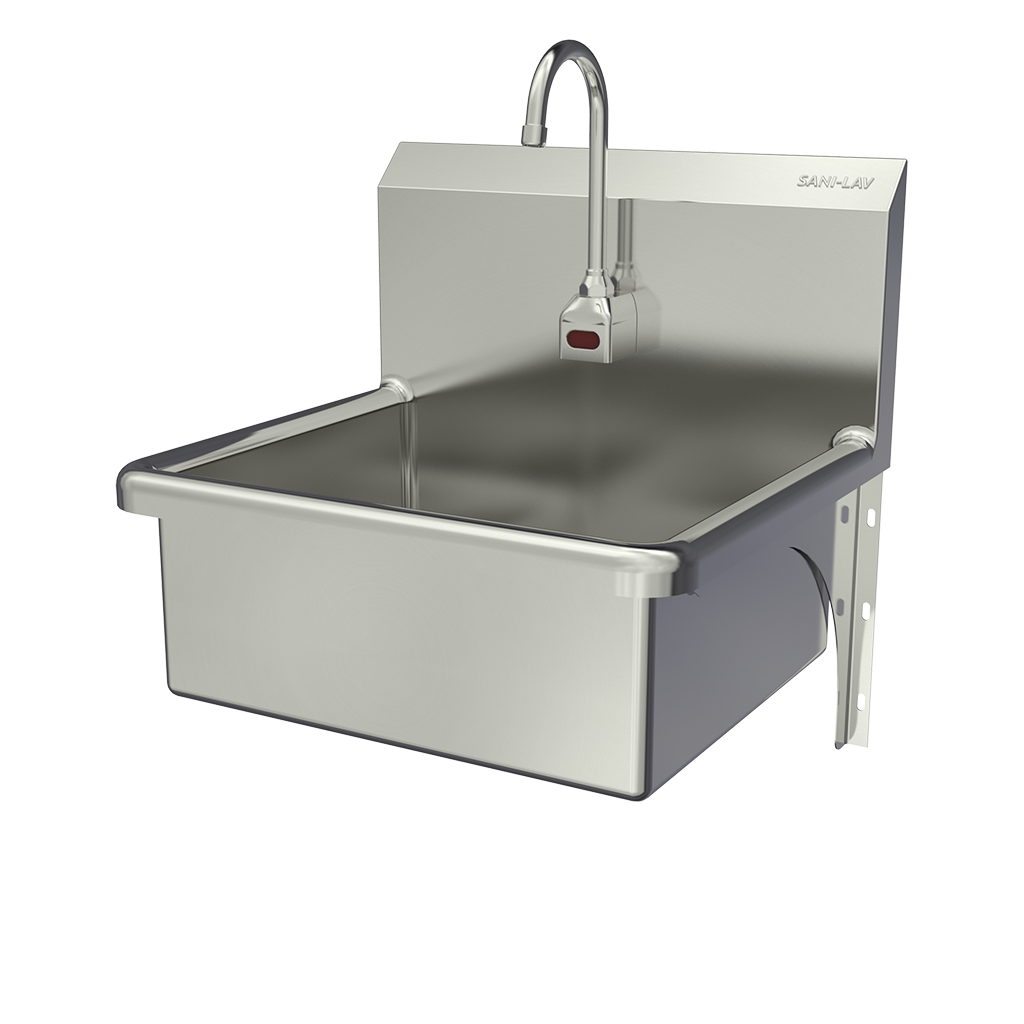

Models 504A & 504B
Low-flow models available |
| Model 504A-0.5 – 0.5 GPM flow rate |
| Model 504B-0.5 – 0.5 GPM flow rate |
Certified NSF/ANSI 372 low-lead and NSF/ANSI Standard 2 Food Equipment
Hands-Free operation is ideal for use in food service applications. Built to last using 16-gauge, type 304 stainless steel. Exposed surfaces have a satin finish.
Includes:
(1) Wall mount sink – Model 504A or 504B
(1) AC or Battery powered sensor faucet assembly
(1) Strainer assembly with basket – Model 1010
(1) Wall-mounting brackets – Model 1040
(2) Support brackets with mounting bolts
(1) Mixing check valve – Model 201L
504A is AC Powered and 504B is Battery Powered.
Quick Specs |
|
| Outside Dimensions | 23″ x 20-1/2″ x 19-1/2″ High |
| Inside Bowl Size | 20″ x 17″ x 9″ Deep |
| Back Splash Height | 10-1/2″ |
| Water Activation | AC or Battery Powered Sensor Faucet |
| Flow Rate | 2 GPM |
| Inlet Connections | 3/8″ Male Compression |
| Drain Opening | 2″ |
| Finish | Satin |
| Strainer | 1-1/2″ Dia. Duo Basket Strainer |
| Wall Mounting Bracket | 1/4″ Dia. Mounting Holes |
