Model 705

Add to Compare

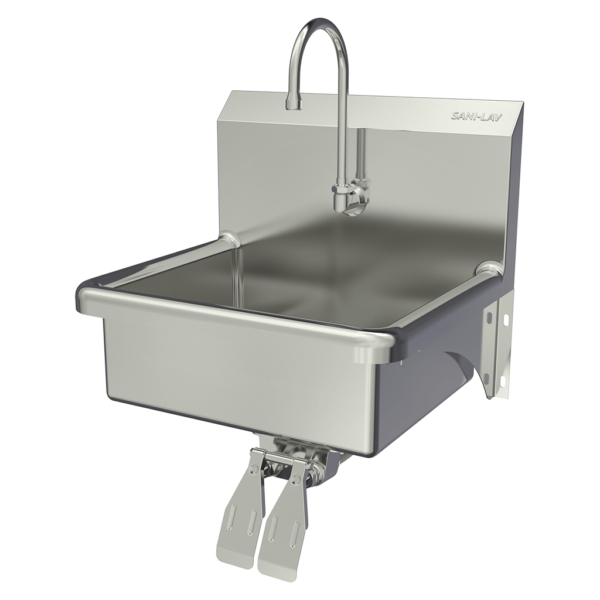

Hands-Free Wall Mount Sink

Certified NSF/ANSI 372 low-lead and NSF/ANSI Standard 2 Food Equipment

Hands-Free operation is ideal for use in food service applications. Built to last using 16-gauge, type 304 stainless steel. Exposed surfaces have a satin finish. Specially designed knee valves provide easy access to working parts without disconnecting mount or plumbing.

Includes:

(1) Wall hung sink – Model 705
(1) Wall mounting bracket – Model 1040
(2) Support brackets with mounting bolts
(1) Double knee pedal valve (bottom mount) with 2 nuts – Model 111L
(1) Swivel gooseneck spout with aerator – Model 2003L
(1) Connecting tubes for valve to spout connection – Model 1007L
(2) Brass fittings with 0.375” male compression and 0.375” male NPT – Model 1008L
(1) Strainer assembly with basket – Model 1010

Quick Specs

Outside Dimensions 20″ x 17-1/2″ x 16-1/2″ High
Inside Bowl Size 17″ x 14″ x 7″ Deep
Back Splash Height 9-1/2″
Water Activation Double Knee Pedal Valve
Flow Rate 2 GPM
Inlet Connections 1/2″ Male NPT
Drain Opening 2″
Finish Satin
Strainer 1-1/2″ Dia. Duo Basket Strainer
Wall Mounting Bracket 1/4″ Dia. Mounting Holes
