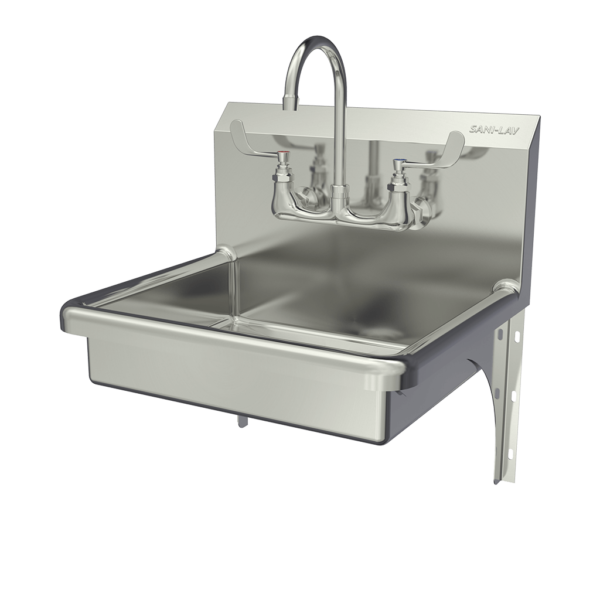

Model 5A4F
Certified NSF/ANSI 372 low-lead and NSF/ANSI Standard 2 Food Equipment
Ideal for use in the medical and clean room applications. Built to last using 16-gauge, type 304 stainless steel. Exposed surfaces have a satin finish.
Includes:
(1) Wall mount sink – Model 5A4F
(1) 8″ OC Splash mount faucet with 10″ swivel spout and 4″ wing levers – Model 204
(1) Strainer assembly with basket – Model 1010
(1) Wall-mounting bracket – Model 1040
(1) Faucet mounting kit – Model SMK
Quick Specs |
|
| Outside Dimensions | 22″ x 19″ x 14″ High |
| Inside Bowl Size | 19″ x 15.5″ x 5″ Deep |
| Back Splash Height | 9″ |
| Water Activation | Manual Faucet with 4″ Handles |
| Flow Rate | 2 GPM |
| Inlet Connections | 1/2″ Male NPT |
| Faucet Mounting Center | 8″ |
| Faucet Mounting Holes | 7/8″ |
| Drain Opening | 2″ |
| Finish | Satin |
| Strainer | 1-1/2″ dia. Duo Basket Strainer |
| Wall Mounting Bracket | 1/4″ dia. Mounting Holes |
