Model 58WAL & 58WBL
Low-flow models available |
| Model 58WAL-0.5 – 0.5 GPM flow rate |
| Model 58WBL-0.5 – 0.5 GPM flow rate |
Certified NSF/ANSI Standard 2 Food Equipment and NSF/ANSI 372 low-lead
Constructed from welded #16 gauge type 304 stainless steel. The front, bottom and back are formed from a single sheet with a rolled rim on front and sides. Exposed surfaces have a blended uniform satin finish.
Includes:

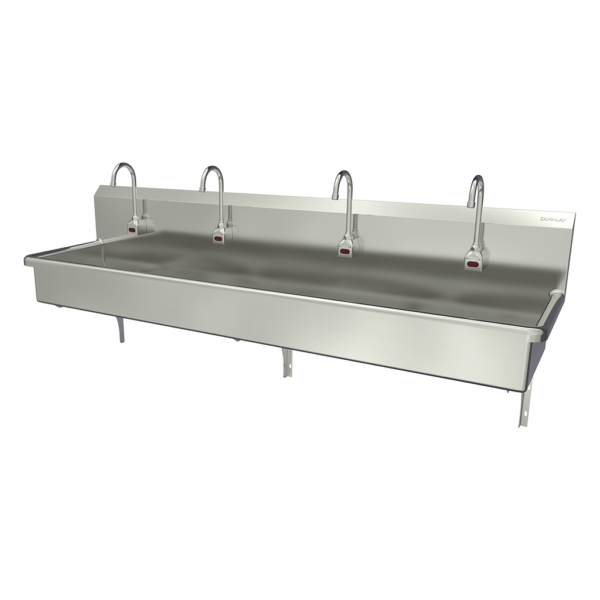

(1) Four-person wall mount wash station – Model 58WAL or 58WBL
(4) AC or Battery powered sensor faucet assembly
(3) Wall mounting brackets – Model 1044
(2) Support brackets
(2) Strainer assembly with basket – Model 1010
(4) Mixing check valve – Model 201L
58WAL is AC Powered and 58WBL is Battery Powered.
Quick Specs |
|
| Outside Dimensions | 80″ x 20″ x 18″ High |
| Inside Bowl Size | 77″ x 16-1/2″ x 8″ Deep |
| Back Splash Height | 10″ |
| Water Activation | AC or Battery Powered Sensor Faucet |
| Flow Rate | 2 GPM |
| Inlet Connections | 3/8″ Male Compression |
| Drain Opening | 2″ |
| Finish | Satin |
| Strainer | 1-1/2″ Dia. Duo Basket Strainer |
| Wall Mounting Bracket | 1/4″ Dia. Mounting Holes |
