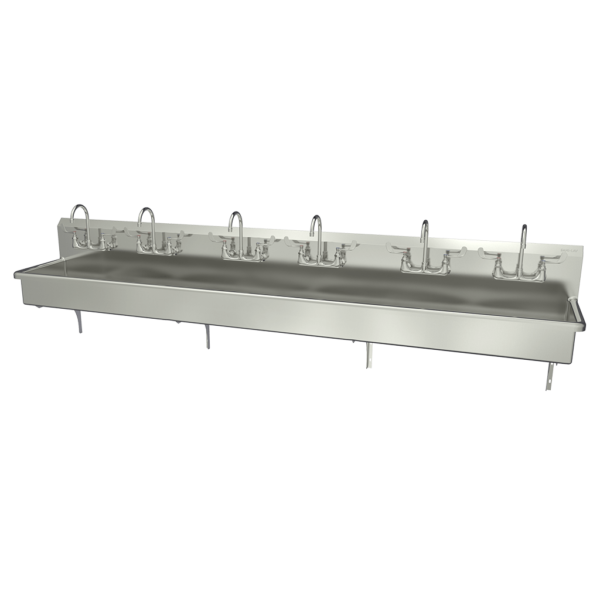

Model 512WFL
Certified NSF/ANSI Standard 2 Food Equipment and NSF/ANSI 372 low-lead
Constructed from welded #16 gauge type 304 stainless steel. The front, bottom and back are formed from a single sheet with a rolled rim on front and sides. Exposed surfaces have a blended uniform satin finish.
Includes:
(1) Six-person wall mount wash station – Model 512WFL
(6) 8″ OC Splash mount faucet with 10″ swivel spout and 4″ wing levers – Model 204
(6) Faucet mounting kit – Model SMK
(4) Wall-mounting brackets – Model 1044
(4) Support brackets
(3 Strainer assembly with basket – Model 1010
Quick Specs |
|
| Outside Dimensions | 120″ x 20″ x 18″ High |
| Inside Bowl Size | 117″ x 16-1/2″ x 8″ Deep |
| Back Splash Height | 10″ |
| Faucet Mounting Center | 8″ |
| Water Activation | Manual Faucet with 4″ Handles |
| Flow Rate | 2 GPM |
| Inlet Connections | 1/2″ Male NPT |
| Drain Opening | 2″ |
| Finish | Satin |
| Strainer | 1-1/2″ Dia. Duo Basket Strainer |
| Wall Mounting Bracket | 1/4″ Dia. Mounting Holes |
