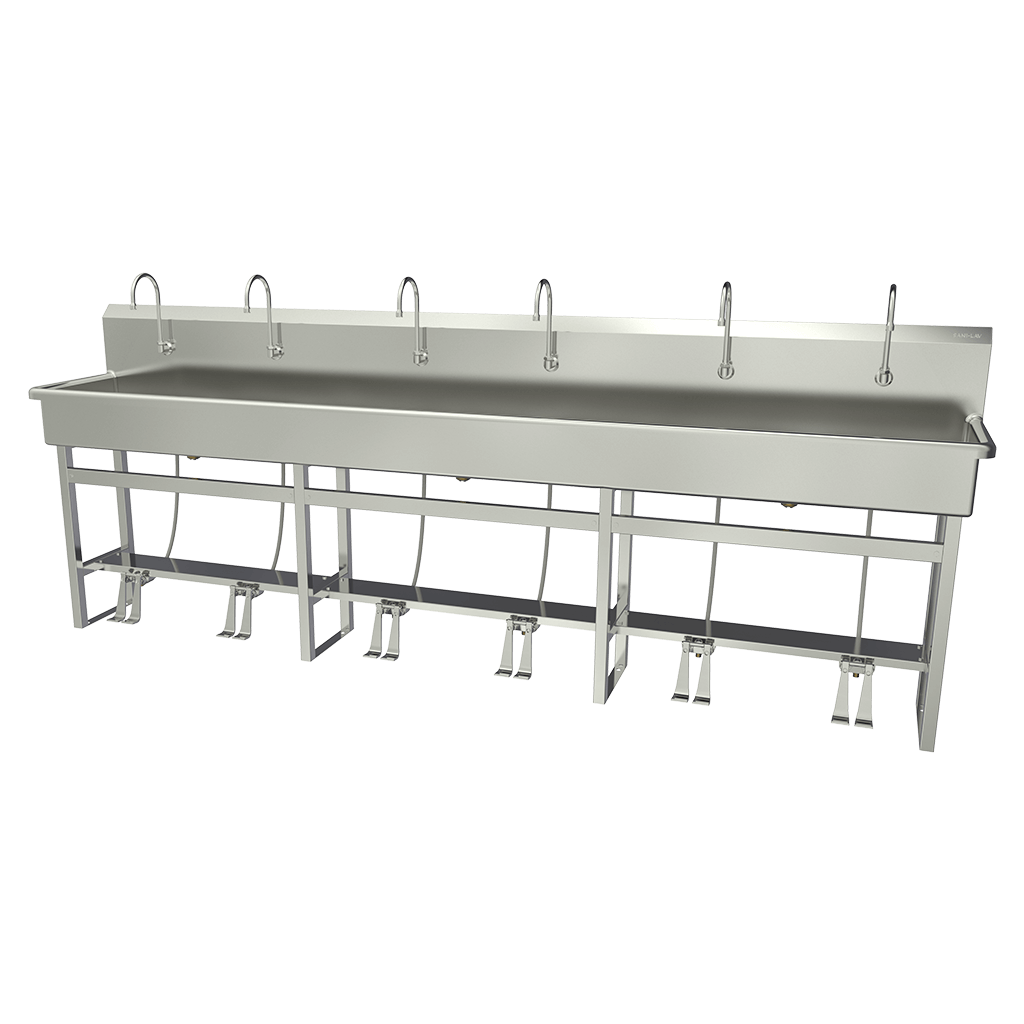

Model 512FSL

Add to Compare

Low-flow model available

Model 512FSL-0.5 – 0.5 GPM flow rate

Certified NSF/ANSI Standard 2 Food Equipment and NSF/ANSI 372 low-lead

Constructed from welded #16 gauge type 304 stainless steel. The front, bottom and back are formed from a single sheet with a rolled rim on front and sides. Exposed surfaces have a blended uniform satin finish. Specially designed floor valves provide easy access to working parts without disconnecting mount or plumbing.


(1) Six-person floor mount wash station – Model 512FSL
(1) Leg assembly set
(8) Washers and nuts for connection sink to leg assembly set
(6) Double foot pedal valves (bottom mount) with 12 nuts – Model 105L
(6) Swivel gooseneck spout with aerator – Model 2003L
(6) Connecting tubes for valve to spout connection – Model 1007L
(12) Fittings, brass, 0.375” male compression and 0.375” male NPT – Model 1008L
(3) Strainer assembly with basket – Model 1010

Quick Specs

Outside Dimensions 120″ x 20″ x 45″ High
Inside Bowl Size 117″ x 16-1/2″ x 8″ Deep
Back Splash Height 10″
Water Activation Double Foot Pedal Valve
Flow Rate 2 GPM
Inlet Connections 1/2″ Male NPT
Drain Opening 2″
Finish Satin
Strainer 1-1/2″ Dia. Duo Basket Strainer
